S/Y LAYA in English


Specifications

Ketch 51 feet.

Morgan Out Island 511

Built in the USA by Morgan Yacht Corporation

Build 1975

Engine Volvo Penta TAMD 31A, 135 HP

LOA (length) 15.78 m

Width 4.53 m

Weight ready to sail with full tanks 26 Ton

Registered in the Swedish ship registry with Callsign SDAI

Home port: Huskvarna

Insurance: PANTAENIUS, Kasko, liability and accident


Morgan OI 511, is a real "live aboard" boat with three double cabins and salon with large volume where there is space for social gathering.

Lonhkeel hull with little draft of 1.7 m. Equipped with lifting keel 1.5 m for better sailing.

Sail : Mainsail 38.30 M², Genoa 42.8 M², Mizzen 19.42 m²



2009 08 23_urbans_9191_redigerad-1

Photo: Urban Lindström



Navigation:

AIS transponder class B

Computer with electronic charts and GPS

Plotters

Autopilot

Radar

Compass

New Sonar 2016

Log New 2016

Wind Instruments New 2016

marine binoculars

Communication / Security:

SAILOR FleetBroadband 150 (Communication Satellite)

VHF fixed IC-M412

VHF Portable

NAVTEX

McMurdo EPIRB GPS

Horseshoe with flashing light

Liferaft 8 pers repacked 2013

Man Overboard Rescue System (floating harness & Line)

Safety rope on the deck, bow to stern both sides

4 fire extinguishers

fire Blanket

Life jackets for 8 persons

Swimming platform with ladder

Parachute flares, flares and smoke signals

Smoke alarms

Defibrillator

Radar Reflector Ekomax

Burglaralarm

Safe / Code Lock

Grabbag

Tru hull fittings/Seacocks and valves are in composite NEW



Deck equipment:

Windlass LEWMAR V4 electrically / remote control

80 meters chain

Bruce anchor 30 kg + reserve anchor

Stern anchor with ankarolina

FURLEX furling genoa

Lazypac at Main & Mizzen New 2016

The rubber dinghy, Carib 10 feet hard bottom and wheels

Outboard Yamaha 6HP

Fixed doghouse protection for wind and weather

Cockpit cover for cold nights

Boathooks

Fenders

Mooring lines in amount

Mast Step installed in both masts

Reeling stainless 90cm high

2 Whisker oles

Flush pump for seawater

Manual bilge pump in cockpit

Wireless communication headsets.

Pressure Washer

4 diesel jerry cans

1 water jerry can

Bucket

Signal Set / flags

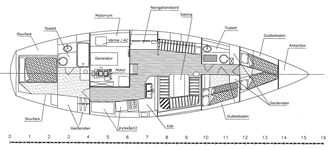

Click on the drawing for display in its own window



2009 08 23_urbans_9167_redigerad-1


Photo: Urban Lindström

Other

Tools for most jobs, mentioned only part of:

Socket wrenches, Welding, Circular Saw, Jigsaw, Drill, Dremelmaskin, Polishers,

Mixed parts o good to have stuff.

Instruction manuals for all major systems

Large ice box on the deck for extra stowage or picknic

2 barrels in stern for additional stowage

Contact: futurewinds@hotmail.com





Comfort:

Stereo with speakers in cockpit and salon

TV 19 inch with DVD player, HDMI Connect to PC

Washing machine 3.5 kg

Toaster

Vacuum cleaner

Electric stove with oven

Alcohol stove in reserve

Kettle electric

Charcoal / barbeque

Refrigerators standard benchtop

Large refrigerator "well" over 100 liters with its own refrigeration compressor.

Freezer Thermo Products TB45

Microwave

Coffee Makers

Compl kitchen equippment for 8 persons

Preassure coocker

Shower in cockpit and in one of the toilets

Fresh water tanks: 250 liters 600 liters

Water heater

Hydronic heating throughout the boat

Fans in all cabins

2 toilets with electric toilets

Septic tank

The Wirie, wifi amplifying anyenna

Router Wifinät board with USB modem, 3G / 4G

WIFI directional antenna for extended range

Printer Scanner

Library of fiction and "boatbooks" Swedish

Cruising Guides across many areas

Dehumidifier

Air cleaner LightAir

Water maker Schenker 60 l / h

Diving compressor 100 l / min

2 diving equipments

Drinking water cooler

USB charger for mobile in all cabins

Cupholders in cockpit

Complete Setup sheets, pillows, blankets, towels, etc.

2 sunchairs

Hammock

Trolley

Energy:

Solarpanels 3X100W + 1x80W + 2x35W + 2X40W

Onan diesel generator of 12 Kw 220V

Consumption battery A600 748 Ah

Victron MultiPlus 12/2000/80 charger / inverter

Reserve Charger CTEK 300

Generator 12V on main 100 Amp

Sterling Pro Alt generator charger 130 Amp

LED lamps 12V lighting throughout the boat

LED strip in ceiling on Doghouse different colored

Lanterns LED new 2011

Inverter 12V to 220V, 300W

Diesel tanks 250 liters 600 liters +
